Seamless, efficient, reliable

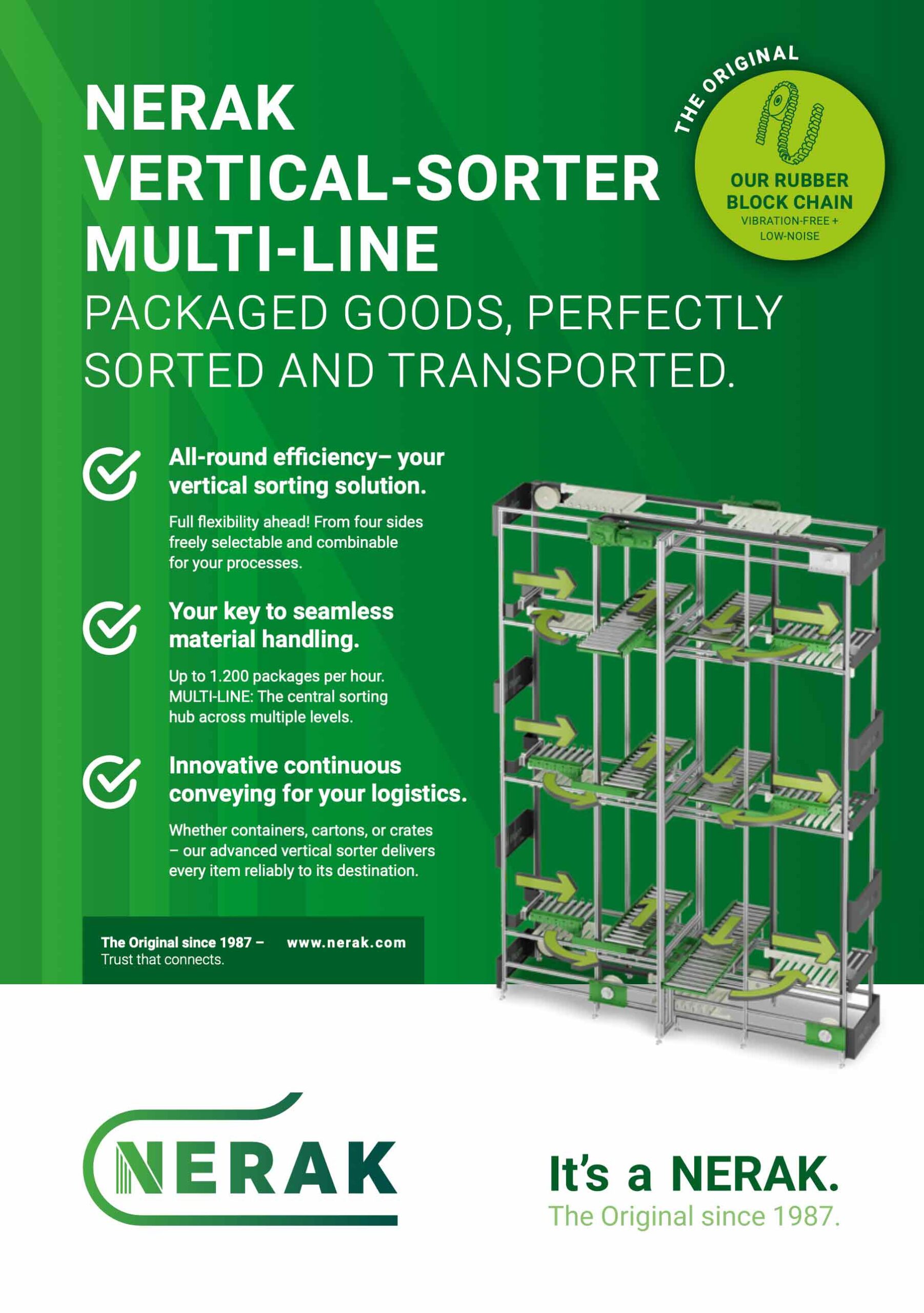

The NERAK Vertical Sorter Multi-Line offers tailor-made solutions for vertical sorting. The system integrates seamlessly into existing material flows and offers maximum flexibility at all levels and in all directions.
| Parameter | ML316 |
| Conveyor length (mm) | 300 – 650 |
| Conveyor width (mm) | 200 – 450 |
| Conveyor material height (mm) | 200 – 450 |
| Max. payload (kg) | 50 |
Your solution for vertical sorting – reliable and process-secure.
Freely selectable and combinable from four sides for maximum adaptation to your processes.
Up to 1,200 packages per hour for continuous material flows.
Central sorting station on several levels thanks to innovative circulating conveyor system.
Whether containers, cartons or boxes – the vertical sorter reliably delivers everything to its destination.
Low energy consumption, minimal maintenance thanks to Rubber block chain.
The NERAK Vertical Sorter Multi-Line is a continuously operating circulating conveyor for the vertical sorting of piece goods. At its heart is the feed and removal device (ZEV) with a swivel arm that covers a 90° swivel range. The products are moved via the ZEV into the conveyor tower and transferred there to the conveyor table, which is in continuous circulation. The products are transported via several conveyor tables, which are driven by the NERAK rubber block chain.
The number of transport levels can be freely selected depending on the conveyor parameters. The inlet and outlet heights can also be flexibly adjusted. Loading and unloading takes place at the side, front or rear. The system is highly flexible and can be connected from four sides per level alternately.
The NERAK Vertical Sorter Multi-Line is available in different versions and covers a wide range of applications.
| Parameter | ML316 |
|---|---|
| Conveyer length (mm) | 300 – 650 |
| Conveyer width (mm) | 200 – 450 |
| Conveyer height (mm) | 200 – 450 |
| Conveyer weight (mm) | Max. 50 |
| Train carrier | Rubber block chain |
