Compact, flexible and powerful.
The NERAK Reciprocating Lift offers an efficient solution for vertical transport with high level flexibility.
| AMR transport table, belt and roller conveyors | ✔ |
| Conveyed goods length (mm) | 100 – 2,000 |
| Conveyed goods width (mm) | 100 – 1,500 |
| Conveyed material height (mm) | 20 – 2,000 |
| Max. payload (kg) | 80 – 1,500 |
Any number of levels and a wide variety of load-bearing devices can be implemented.
Sophisticated transfer solutions, space-saving design and low energy consumption.
Low-noise operation for modern production environments.
Various frame designs according to customer requirements, extremely long conveyor distances possible.
Low-maintenance operation with a long service life and low operating costs.
Rubber block chain
or steel cord belt without significant elongation and without lubrication.
The NERAK Reciprocating Lift reliably transports piece goods between levels on a lifting carriage.
The Reciprocating Lift is designed to accommodate a wide variety of load handling attachments. These are set up and can be supplied entirely by NERAK from a single source; alternatively, they can also be supplied by the customer.
The goods are loaded from the side, synchronised by the customer, transported vertically and unloaded again at the desired level and side. This creates an individual travel cycle for a smooth material flow. Any number of levels can be approached.
The NERAK Reciprocating Lift is available in various designs and covers a wide range of different applications.
| Parameter | KH1 | KH15 | KH25 | KH253 |
|---|---|---|---|---|
| Conveyed length (mm) | 100 – 1,100 | 300 – 2,000 | 300 – 1,500 | 100 – 1,050 |
| Conveyor width (mm) | 100 – 700 | 300 – 1,500 | 3,000 – 1,500 | 100 – 750 |
| Conveyor height (mm) | 20 – 1,500 | 100 – 2,000 | 100 – 2,000 | 20 – 1,700 |
| Max. payload (kg) | max. 100 | max. 1,500 | max. 2,500 | max. 80 |
| train carrier | toothed belt | steel cord belt | steel cord belt | rubber block chain |
The console lift can be equipped with AMR transport tables – for seamless automation in the conveyor process.

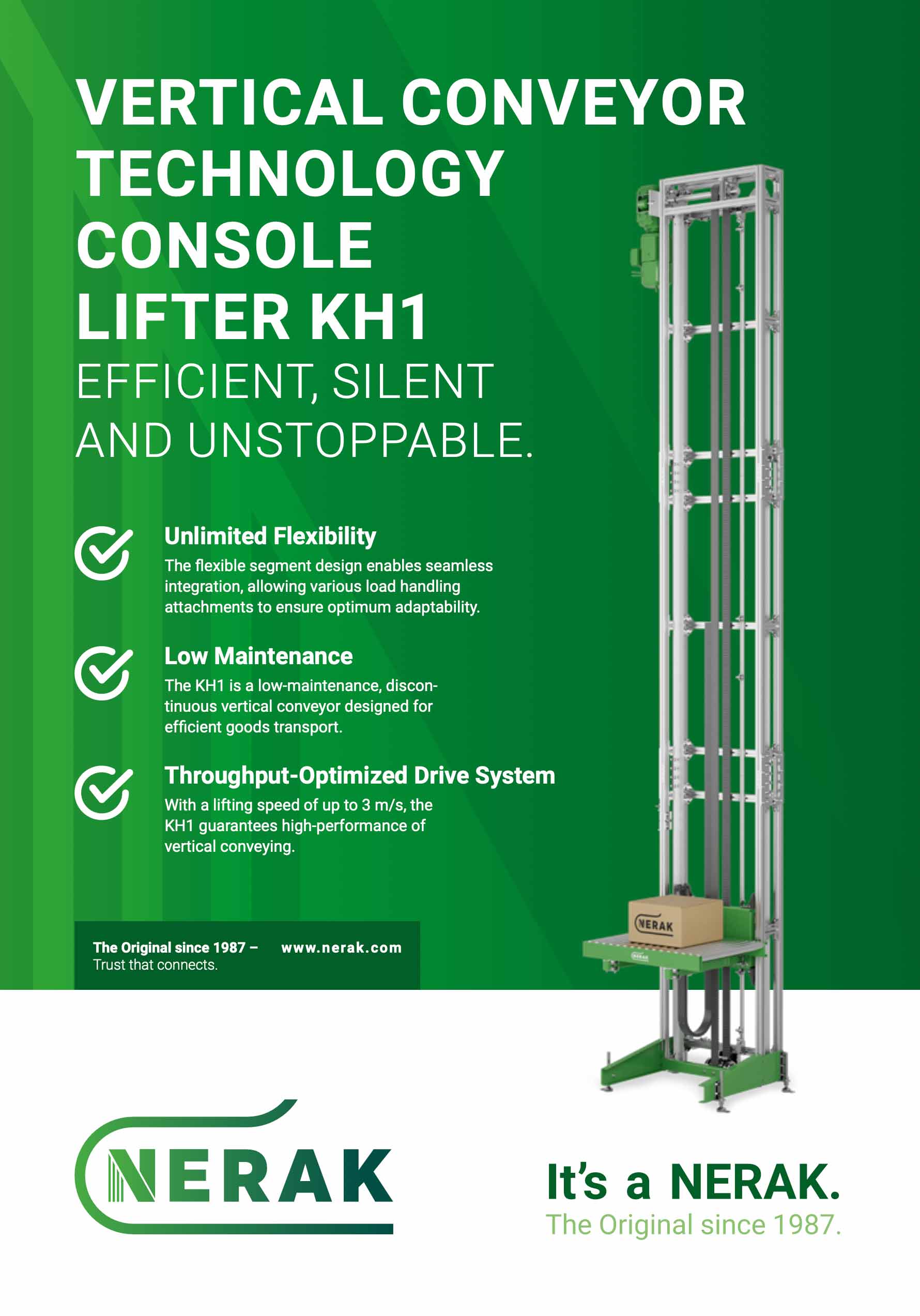

The NERAK KH1 enables flexible, vertical transport with belt conveyors for safe transfers at different levels.
Combine the NERAK KH1 with a roller conveyor to optimise material flow and transport.
